Blog 4 - Prepping the Design for Printing

Enclosure Design Improvements

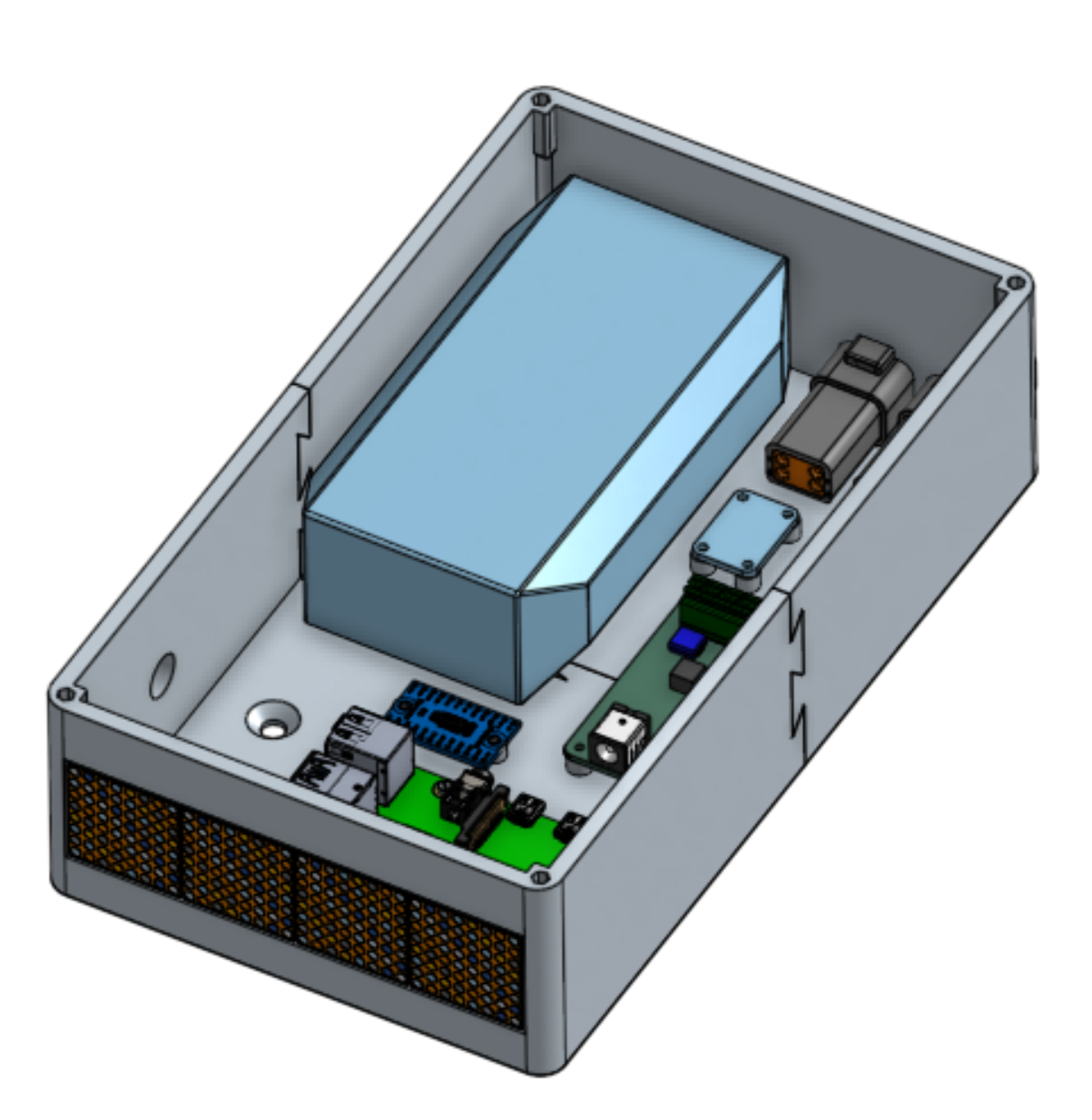

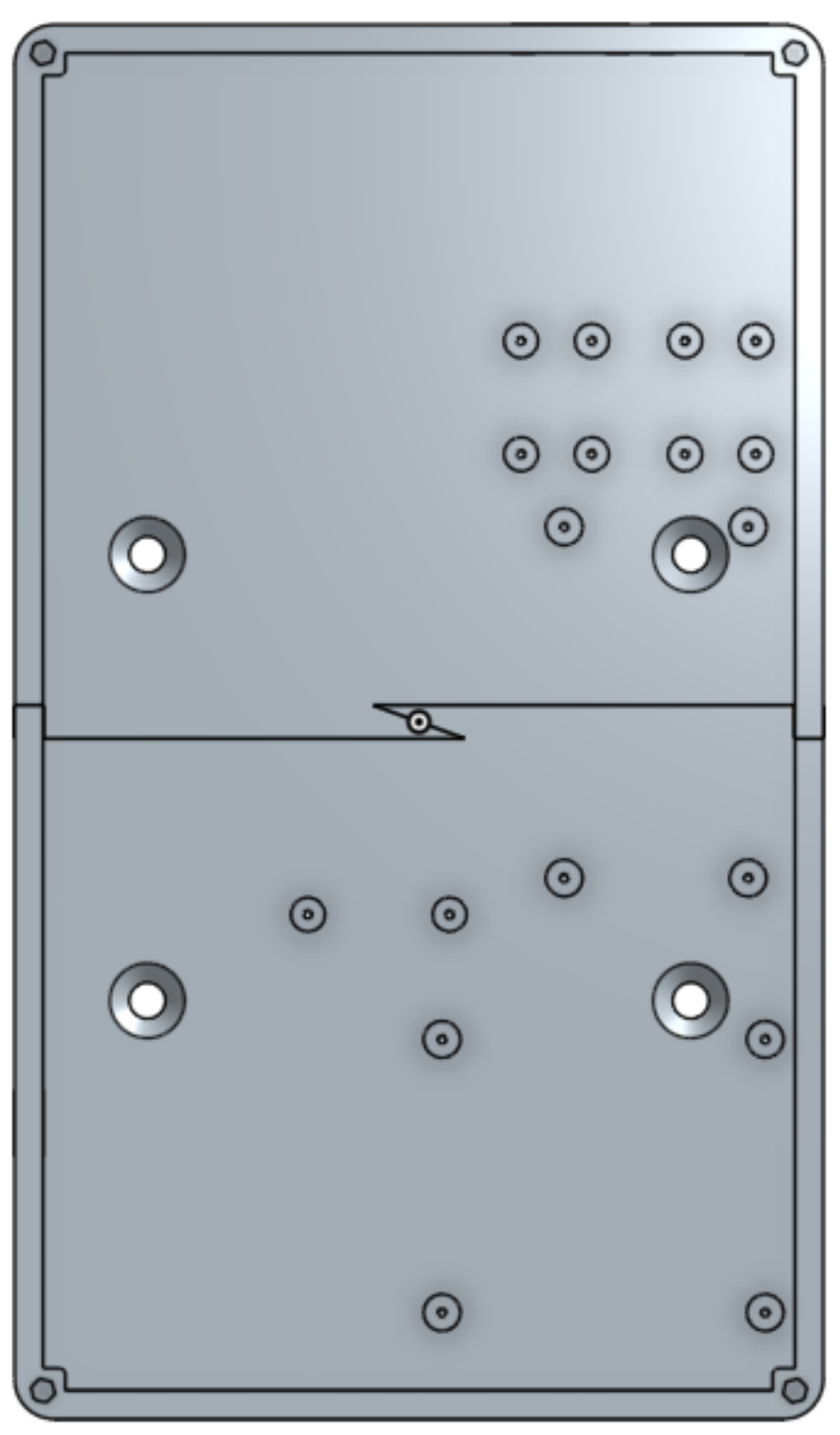

• Added mounts for additional mounts for the speed controllers, custom PCB and I2C Multiplexor

• Added a hole on the side of the box for a barrel jack connector to charge the battery

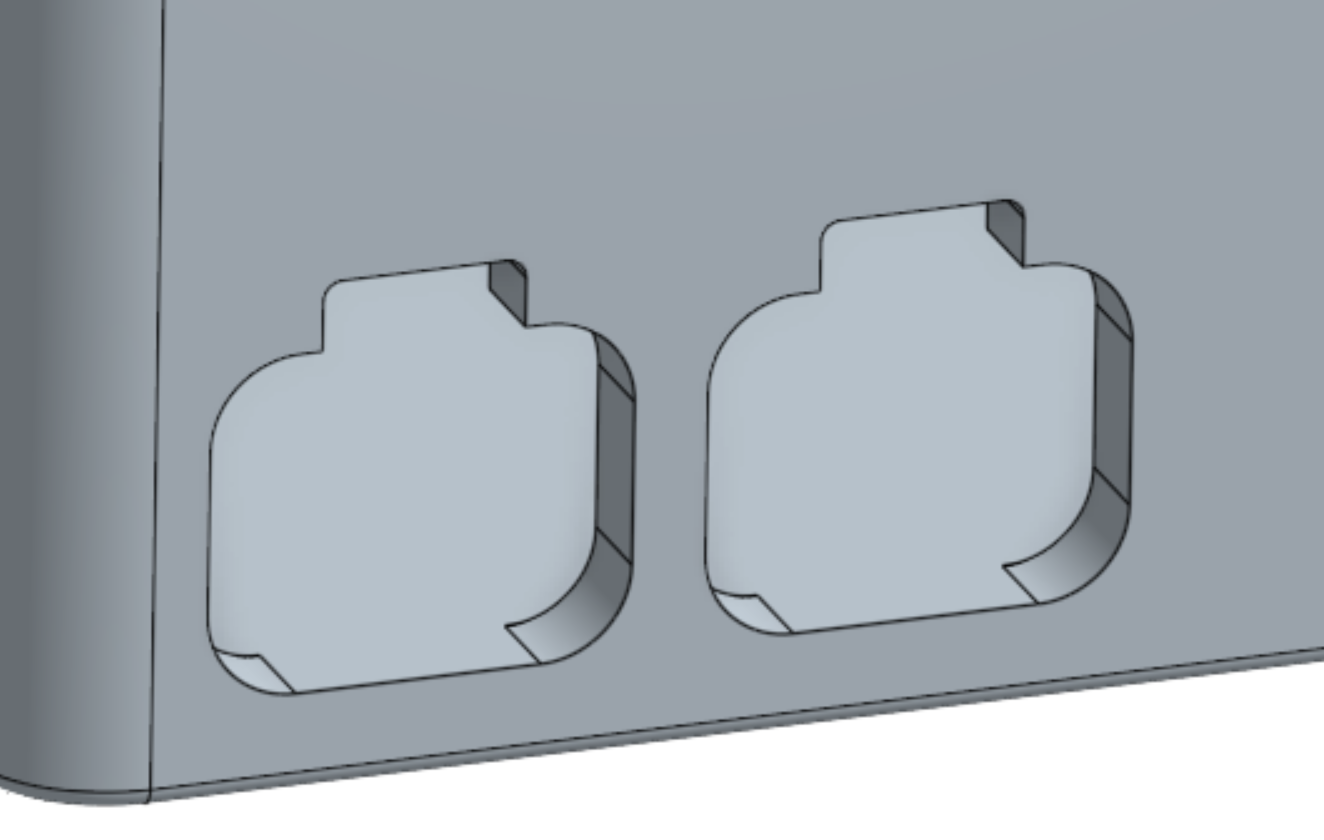

• Added Holes for the connectors

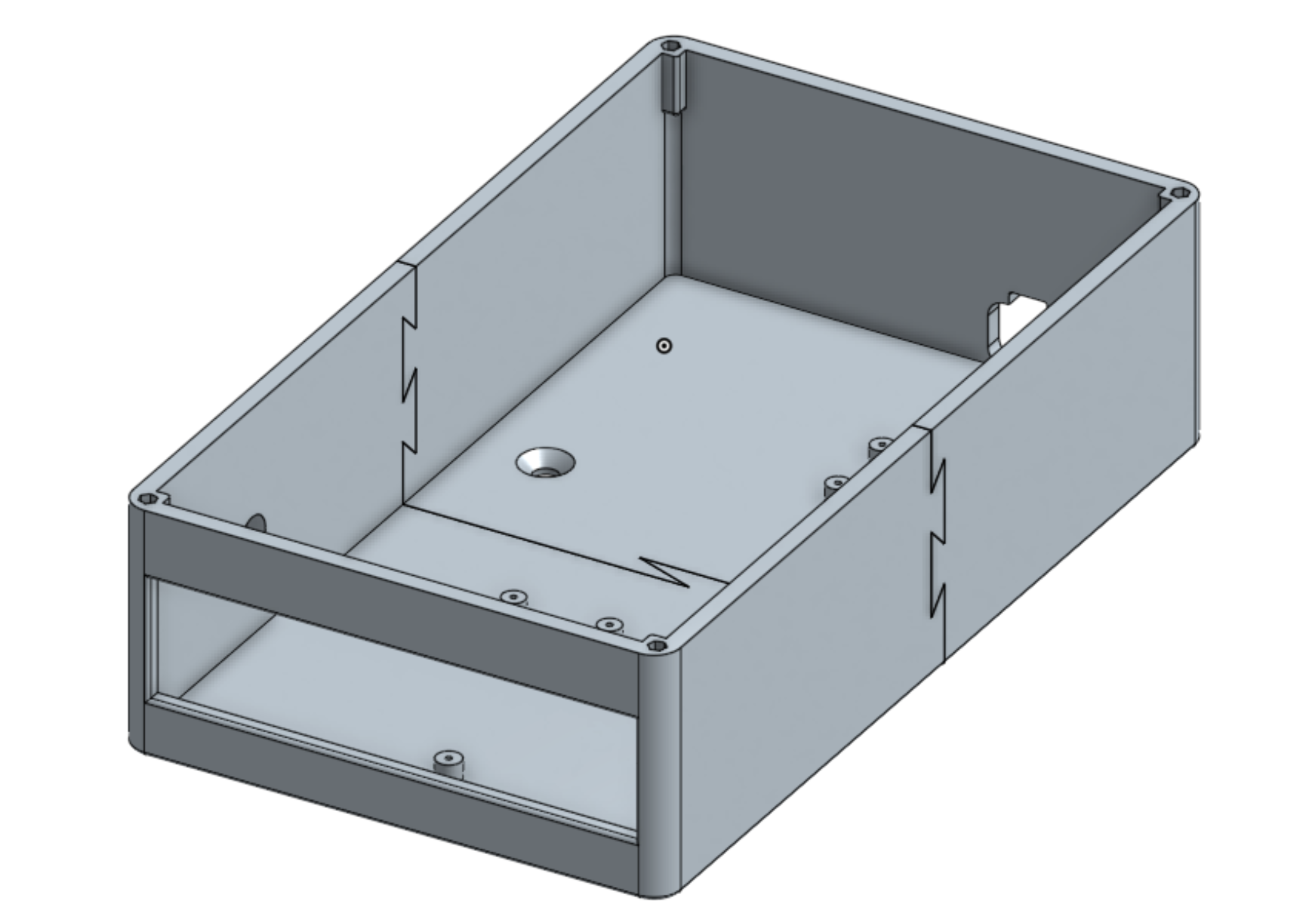

• Split the Box across the middle for prepare for printing

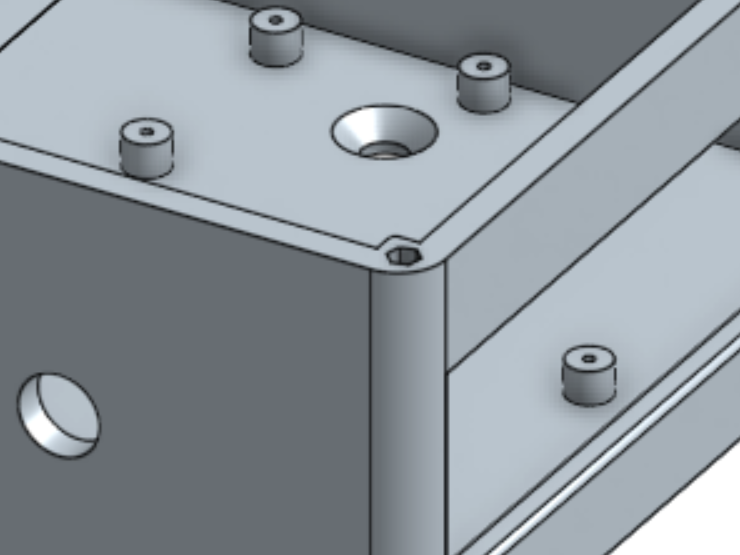

• To ensure that the lid is mounted securely holes for nuts are added

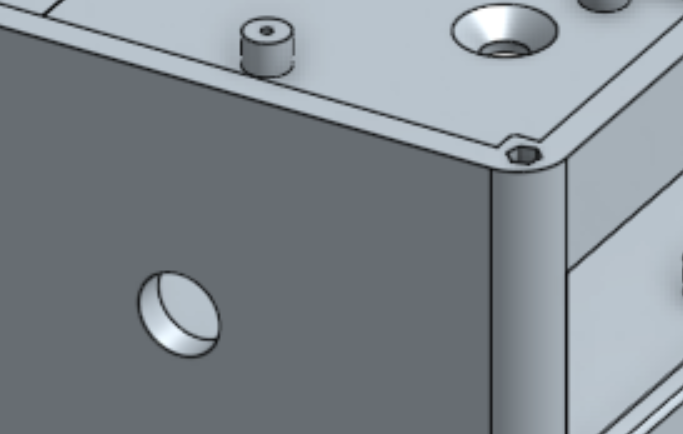

• Screw tolerances changed to ensure clearance fit for the box lid

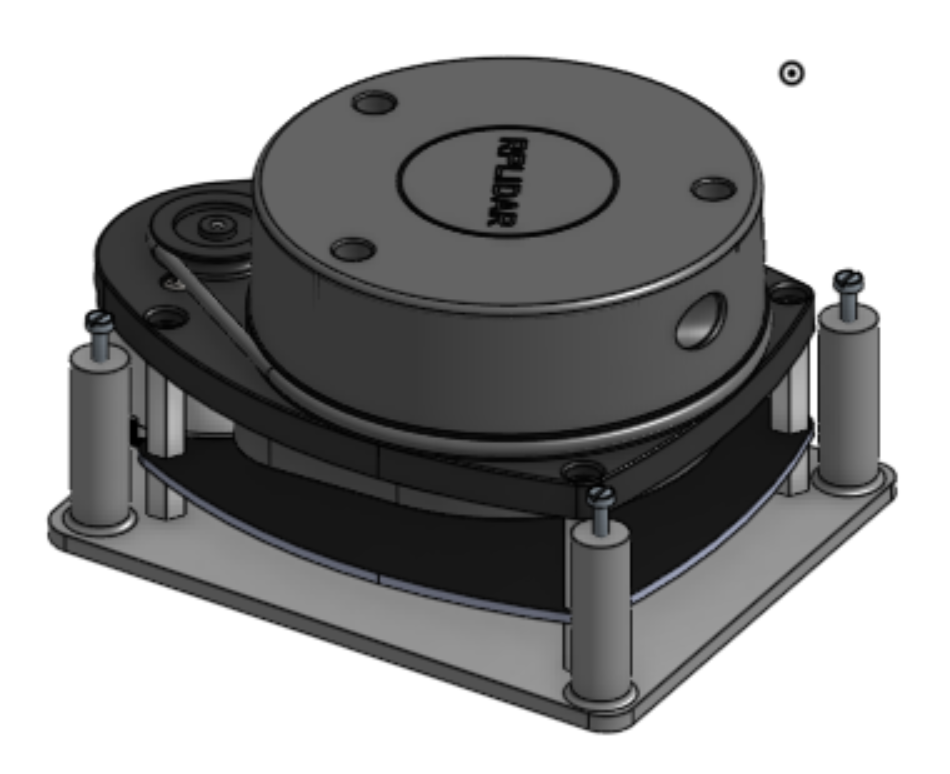

• The lidar mount broke easily when printed, fillets were added near the base and the posts diameter was increased to make it more robust
